Die Cutting Modules
Bernal Die Cutting Modules

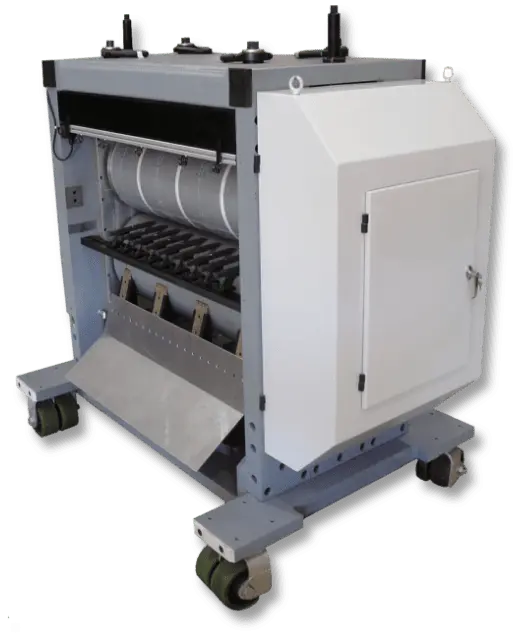

Bernal Modules are designed to maximize die performance. As premier die manufacturer, we know the qualities required in every module design to assure precision die cutting with trouble-free operation. Modules come in many standard sizes and are designed to suit a wide variety of applications, including folding cartons, medical supplies, consumer products, batteries, foods, and many others…
Features and Benefits
Our side, bottom, and top plates are stress-relieved, precision-machined and assembled in highly rigid box sections. All Bernal modules include bearing housings of our own design and manufacture, with print class, precision-matched bearings.
- In-module pin stripping
- Rapid changeovers
- Maximized die life
- Compatible with all types of rotary dies
- In-stock parts
- Single-source die and module responsibility
- Highly rigid box construction
- Precision bearing housings
- Rigid stripping comb assemblies
- Temperature-controlled oil lubrication
- Grease lubrication
- Side, rotational and skew bearing adjustments
- Available in journaled and journal-less versions
Modules for Every Die Cutting Operation
The precision modules we make allow our dies to operate at their highest speed and achieve the longest life possible. The rigid construction of our dies eliminates the flex that causes premature die wear and poor cut quality, resulting in a die that will outlast and outperform its competition.
Single-Slot Modules

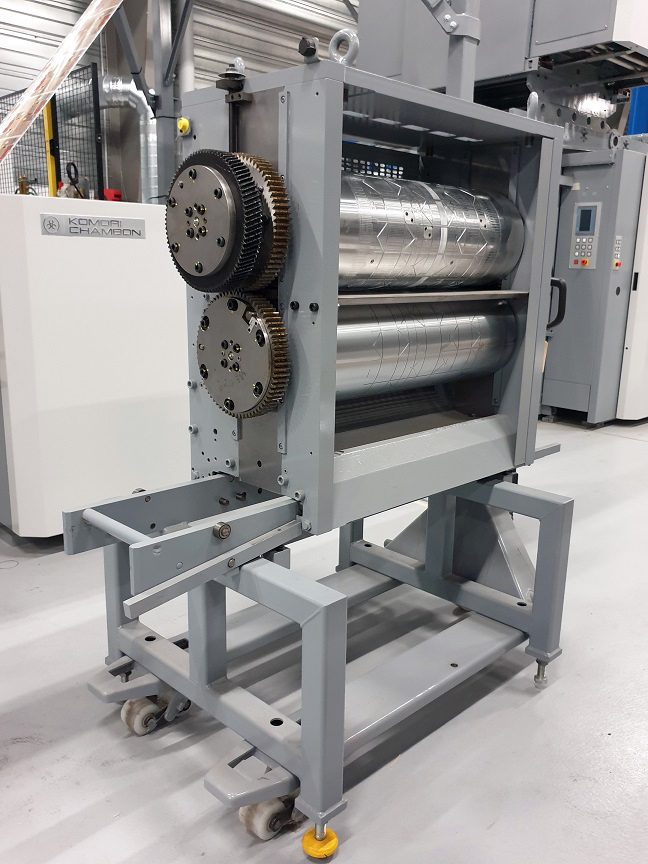

Single slot modules carry four bearing housings in which the upper and lower tools are mounted. We offer this type of module with and without in-module stripping capability.
Dual-Slot Modules

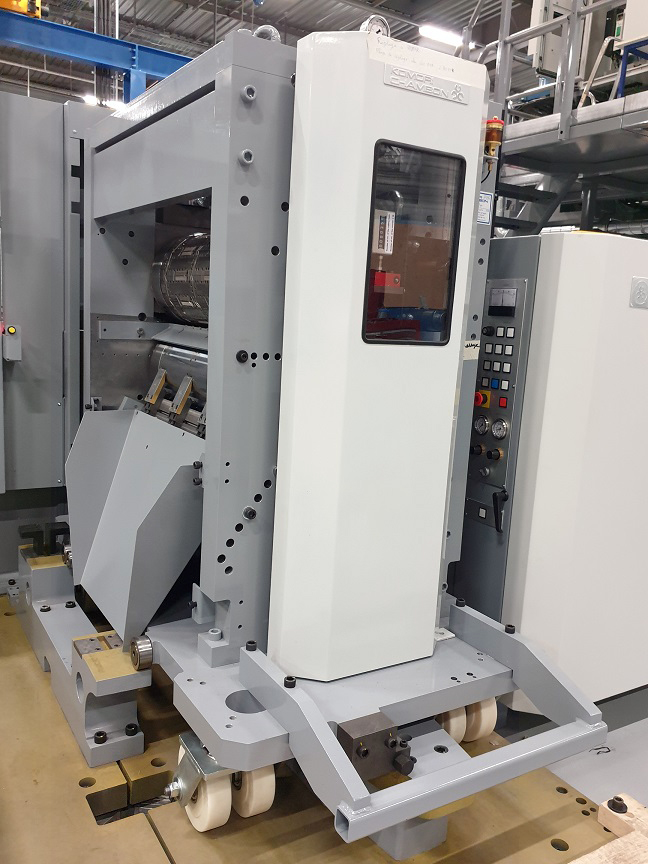

We recommended dual-slot modules when extreme precision between first and second station tooling is an absolute must. This arrangement allows two tool sets to be removed and kept in register with each other. The majority of our dual-slot modules are configured in a base-mounted or roll-in style, so the module can roll or lift onto a set-up platform.
Bernal Custom Designed Modules
We excel in creating and manufacturing 100% custom die cutting modules. Our knowledge and expertise allow us to design modules that fit seamlessly into our customer’s existing rotary cutting or processing systems — even those designed by other manufacturers.
Scrap Removal Solutions
We offer a variety of stripping methods to remove both continuous scrap and island scrap without sacrificing speed or precision. In-tool stripping features a pin mounted in the lower tool to skewer the scrap, and a stripping comb mounted to a rigid assembly to lift the scrap off the pin, which is then vacuumed away. We also provide outboard stripping, in which the stripping pins (which may be fixed or retractable) are housed in a separate cylinder and in a separate station.
Module Bearings
Our family of bearing housing designs can support our largest dies or cylinders up to 110” (2800mm) in product processing width and up to a maximum diameter of 35 inches (890mm). Available bearing designs are manufactured to extremely low-tolerance specifications, and available with either oil or grease lubrication. The bearings used are of the highest quality and precision, and capable of the RPMs needed to reach die cutting speeds of up to 1,500fpm (500 mpm).
Customer Testimonials
-
-
“For more than 10 years GMV Tool and Die has delivered more than 150 die sets from Bernal to Scandinavian customers. Most of the dies have been manufactured with Bernal’s unique laser cladding technology. Our customers have experienced outstanding results. We have had the best response possible from our customers. They come back for more.”
GMV Tool and Die
"Cavanagh Company and Bernal have been great partners for over 35 years. We at Cavanagh have enjoyed the high level of manufacturing and service that Bernal continues to deliver on. Our critical specifications and geometry are unique and have evolved over the years that Bernal has mastered in complete confidence."
Cavanagh Company
"Bernal's expertise and skill are evident in their design and workmanship. The high level of knowledge and friendly service makes Bernal an easy choice for OEM equipment."
Cascade Designs
-
